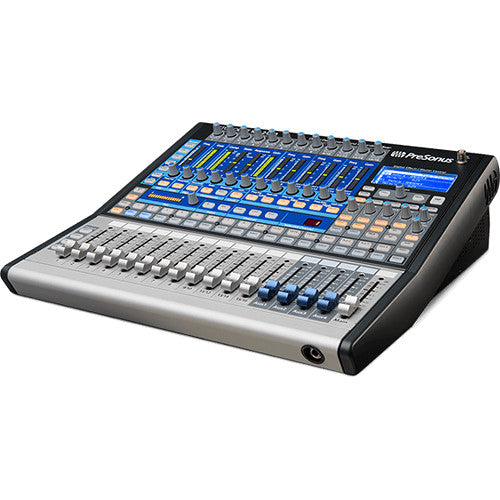

PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer

$1,099.99

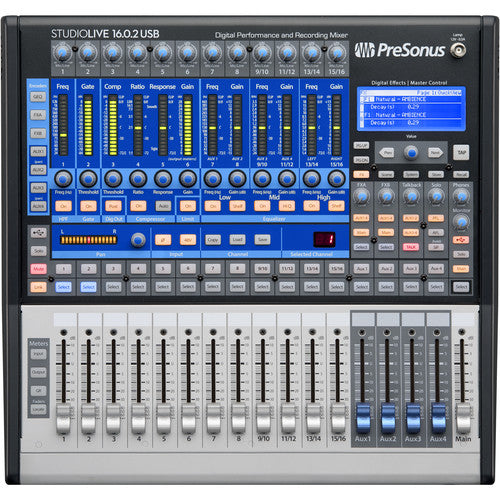

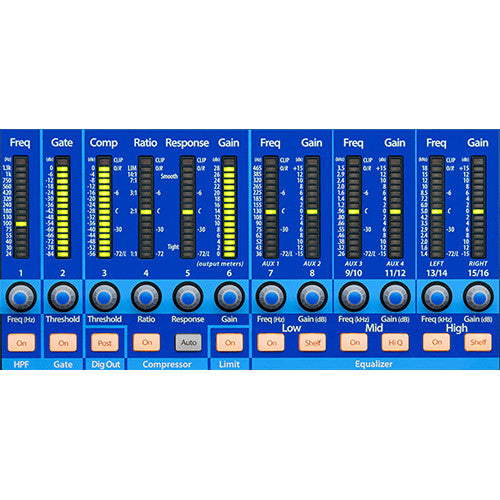

The ease of analog meets the power of digital. The StudioLive 16.0.2 USB's familiar, easy-to-use interface keeps all critical controls visible and accessible -not buried in menus or layers. Our design philosophy is simple: One fader for every mono or stereo channel; one output for every bus. Add to that easily accessed, color-coded function buttons; rotary trim controls; and clearly labeled, individual knobs for EQ and dynamics processing.

Aux sends have their own physical controls. Every channel has a big, bright meter display. But don't let the analog feel fool you: The StudioLive 16.0.2 USB offers the power of modern digital mixing, multitrack recording, wireless remote control, and more.

Specifications:

Number of Analog Input Channels

Signal Processing

Gain/Trim Range	Line: -20 dB to +20 dB (Balanced) Mic/Line: -16 dB to +67 dB
Gate Parameters	Threshold: -84 to 0 dB Attack: .2 ms to 2.5 ms Release: 70 ms
Compressor Parameters	Threshold: -56 to 0 dB Ratio: 1:1 to 14:1 Attack: .2 ms to 180 ms Release: 150 ms to 1.0 sec Knee: Soft / Hard
EQ Parameters	HF Shelf: ±15 dB at 1.4 kHz to 18 kHz (Shelf or Bell Selectable) MF Notch/Peak: ±15 dB at 260 Hz to 3.5 kHz LF Shelf: ±15 dB at 36 Hz to 465 Hz (Shelf or Bell Selectable)

Digital Audio

Sample Rates	44.1 / 48 kHz
Bit Depth	AD/DA Conversion: 24-Bit
DSP	32-Bit Floating Point
Converter Dynamic Range	A/D: 118 dBA at 48 kHz D/A: 118 dBA at 48 kHz
Jitter	< 20 ps RMS
Jitter Attenuation	> 60 dB

Performance

dBFS Reference Level	+18 dBu = 0 dBFS
Frequency Response	Direct Output: 20 Hz to 20 kHz 0/-0.5 dBu (Unity Gain) Main Output: 20 Hz to 20 kHz ±0.5 dBu (Unity Gain) Line Input to Direct Output: 10 Hz to 40 kHz -0.5 dBu (Unity Gain) Line Input to Main Output: 20 Hz to 20 kHz -0.5 dBu (Unity Gain)
Max Input Level	Line Input: +22 dBu (Unbalanced) Line Input: +22 dBu at Unity Gain (Balanced) Mic Input: +16 dBu
Output Level	Aux Output: +18 dBu Main Output: +24 dBu Monitor Output: +18 dBu
I/O Impedance	Line Input: 10 Kilohms Main Output: 100 Ohms Aux Output: 100 Ohms Monitor Output: 100 Ohms Mic Input: 1 Kilohms
Crosstalk	Input to Output: -90 dBu Adjacent Channels: -87 dBu
CMRR	65 dB at Unity Gain
EIN	125 dB 130 dB (2901653035)
SNR	Line Input to Direct Output: -105 dBA at Unity Gain (+4 dBu Reference) Line Input to Main Output: -95 dBA at Unity Gain (+4 dBu Reference) Mic/Line Input to Direct Output: -102 dBA at Unity Gain (+4 dBu Reference) Mic/Line Input to Main Output: -95 dBA at Unity Gain (+4 dBu Reference)
THD	Line Input to Direct Output: < 0.0007% at Unity Gain (+4 dBu, Unweighted) Line Input to Main Output: < 0.005% at Unity Gain (+4 dBu, Unweighted) Mic/Line Input to Direct Output: < 0.005% at Unity Gain (+4 dBu, Unweighted) Mic/Line Input to Main Output: 0.005% at Unity Gain (+4 dBu, Unweighted)

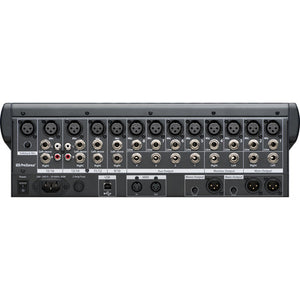

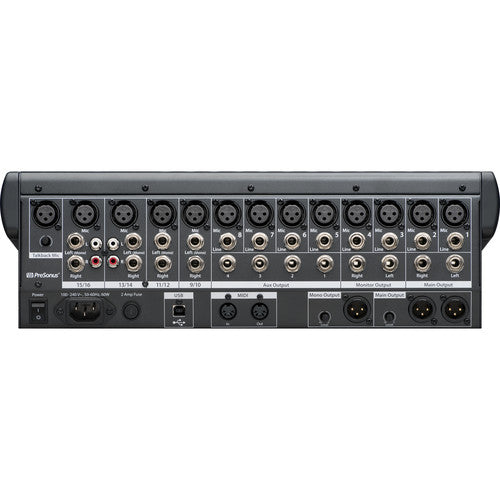

Connectivity

Analog Inputs	8 x 1/4" TRS Balanced Input 2 x Stereo RCA Unbalanced Input 12 x XLR Balanced Mic Input 8 x 1/4" TRS Balanced Line Input (4 Stereo Pairs)
Analog Outputs	2 x XLR Balanced Main Output (1 Stereo Pair) 2 x 1/4" TRS Balanced Monitor Output (1 Stereo Pair)
Phantom Power	+48 V
USB	1 x USB Type-B (USB 2.0, Host Connection)

Compatibility

OS Compatibility	macOS 10.8.5 or Later Windows 7 Windows 8.1 Windows 10 iOS 9.3 or Later Android 5.0 or Later
Processor Requirement	Intel Core 2 Duo
RAM Requirements	4 GB, 8 GB Recommended
Storage Requirements	30 GB
Mobile Device Compatibility	iPad Android Smartphone Android Tablet
Minimum Display Resolution	1366 x 768
Internet Connection	Yes
Required Hardware	USB 2.0 Port

Power

AC Input Power	90 to 240 VAC, 50 / 60 Hz
AC Power Connector	IEC
Power Consumption	100 W

Physical

Dimensions	15.6 x 16 x 5.5" / 395.2 x 406.4 x 139.7 mm
Weight	20 lb / 9.1 kg
